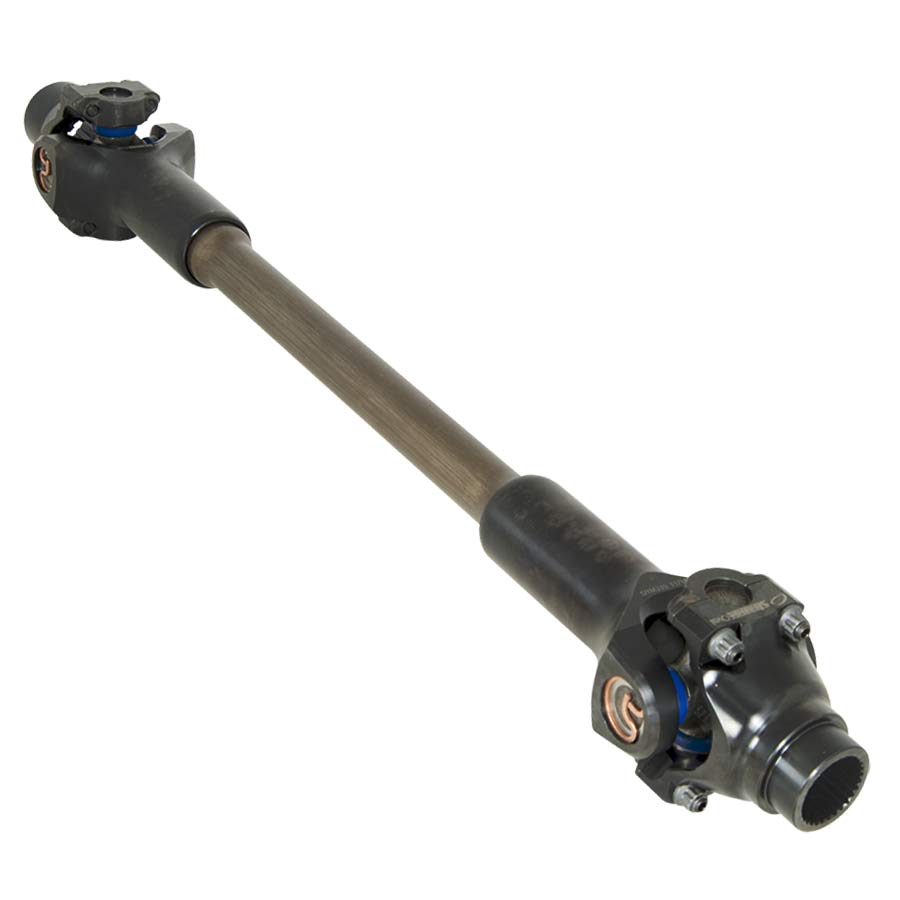

Driveshaft Assembly NE Mod 1310 19.375in Shaft Lgth
STRANGE OVAL DKM203 Drive Shaft – 19.375 in Long – 32 Spline – Gun Drilled – Chromoly – Each
$1,025.99
2 in stock (can be backordered)
Strange Oval Driveshaft
• Up to 22° of misalignment angle (the competition allows for a max. 14°)
• 22 1/8” closed length “center-to-center” of U-joints
• 14.1 Lbs. total weight for assembly 32 spline driveshaft is 14% torsionally stronger in splined area compared to 16 spline shaft Both slip yokes, pinion & transmission yokes will fit all aftermarket driveshafts as well.
• AISI 4340 steel forged, fully machined and through-hardened driveshaft slip yokes
• AISI 4140 steel billet, fully machined and through-hardened, pinion yoke and transmission yoke with proper clearance to eliminate binding between yoke and u-joint
• High strength heat treated billet U-bolts straps (cannot be over-tightened)
• Through-hardened Hy-Tuf steel gun-drilled driveshaft
• 1310 Series SPICER grease-able U-joints
• 12-point aircraft locknuts
Strange Oval Driveshaft DKM203 Description
Steel Gun-Drilled Driveshaft w/1310 re-greasable U-Joint
Now available with a re-greasable 1310 U-joint. Strange Oval’s driveshaft, for the Northeast modified’s, has been running on cars for over 3 years and eliminates all vibration. Bulletproof construction offering years of serviceable life. Added yoke clearance allows for 22° of misalignment (compared to 14° with others). Fits TEO, Bicknell or Troyer.
PART #. DESCRIPTION. QTY.
- DDM103 – 32 SPLINE DRIVESHAFT- 1
- DYM205 – BILLET TRANS YOKE – 1
- DYM225 – BILLET QC PINION YOKE –
- DYM235 – BILLET DRIVESHAFT SLIP YOKE – 2
- U1644 – 1310 U-JOINT (Re-lube 5-153X) – 2
- U1612HD – U-BOLT STRAP KIT – 2
Oval Track Racing Parts
Strange Oval – Quality Made in the USA
With decades of manufacturing, design & engineering innovation, quality & unsurpassed customer service, Strange Oval will service the circle track market with the same, passion, motivation & dedication that has defined us for over 49 years.
Dedicated to the Oval Track Market
Strange Oval is bringing a rich racing heritage and a relentless need to innovate for all forms of oval track racing, including Late Models and Modifieds. Strange has supplied driveline components for CUP teams, via Ford Racing, since the 1980′s.
Who Is Strange Oval?
Strange Oval is a division of Strange Engineering, a industry leading company that has been manufacturing (USA) driveline and suspension components for all forms of racing and hi-performance vehicles since 1964.
