Perf Oil Filter GM Late Model 13/16-16

Oil Filter – Canister – Screw-On – 5.188 in Tall – 13/16-16 in Thread – Steel – Black Paint – Various Applications – Each

See More Specifications

$13.49

33 in stock (can be backordered)

SKU: WIX51061R Category:

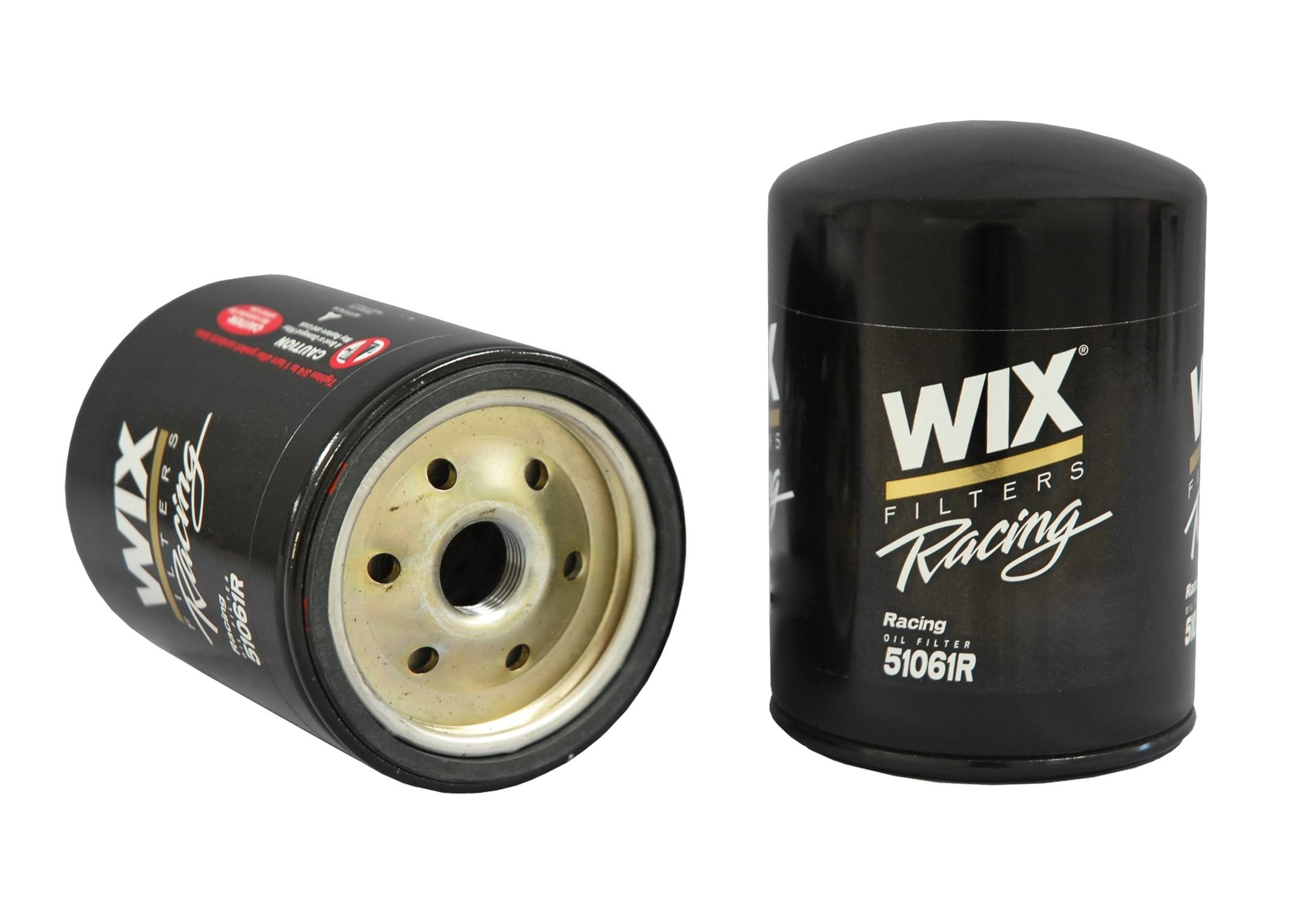

Wix 51061R High Efficiency Race Oil Filter

283-51061R

WIX Racing Oil Filter

  • Height: 5.17″
  • Thread Size: 13/16-16
  • Bypass Valve: None
  • Anti-Drain Back Valve: No
  • Max Flow Rate: 28 gpm

Product Specifications

Part Number: 51061R
UPC Number: 765809129023
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow
Media: Enhanced Cellulose
Height: 5.178(132)*
Outer Diameter Top: 3.66(93)*
Outer Diameter Bottom: Closed:
Thread Size: 13/16-16
By-Pass Valve Setting-PSI: None
Max Flow Rate: 28 GPM
Nominal Micron Rating: 61

(  )* denotes metric

Gasket Diameters

Number O.D. I.D. Thk.
Attached 3.444 (87)* 3.1 (79)* 0.26 (7)*

Advanced Performance (AP) Oil Filters use a media that is rated at a Frazier air flow of approximately 267 CFM and is wire-backed. The unique wire-backing provides a very stable base for a media blend of fiberglass, polyester and cellulose. This media is resistant to high temperatures and water levels in the oil that can plug standard media types. Our Advanced Performance media is designed to provide a high positive oil flow with low restriction.

HIGH EFFICIENCY ENDURANCE OIL FILTERS

FOR USE ON DIRT, CLAY OR OFF-ROAD TRACKS

High Efficiency Endurance (HEE) oil filters use a media rated at a Frazier airflow of approximately 75 CFM. This media contains a higher resin content than our Advanced Performance oil filters to trap and hold smaller contaminants and provide higher efficiency. Our High Efficiency Endurance filters also include the same component features as the Advanced Performance filters: high burst pressure can, high temperature rubber components, zinc chromate baseplate, metal end caps and spiral center tubes.

High Efficiency Endurance Oil Filter Part Numbers: 51060R 51061R 51069R 51222R 51515R 51794R

OIL FILTER FEATURES

  • Heavy-walled can and cover to withstand the extreme burst pressures (up to 500 psi).
  • High temperature nitrile baseplate gaskets withstand extremely high racing temperatures (up to 300°F).
  • Zinc chromate-plated baseplate provides low surface friction and is corrosion free.
  • Spiral-wound center tube provides increased collapse pressure and enhanced flow pattern.
  • Metal end caps provide element strength and prevent filtering bypass.
  • Individually sealed to protect against contamination by environmental dust or dirt.

View WIX Filters Racing Catalog
